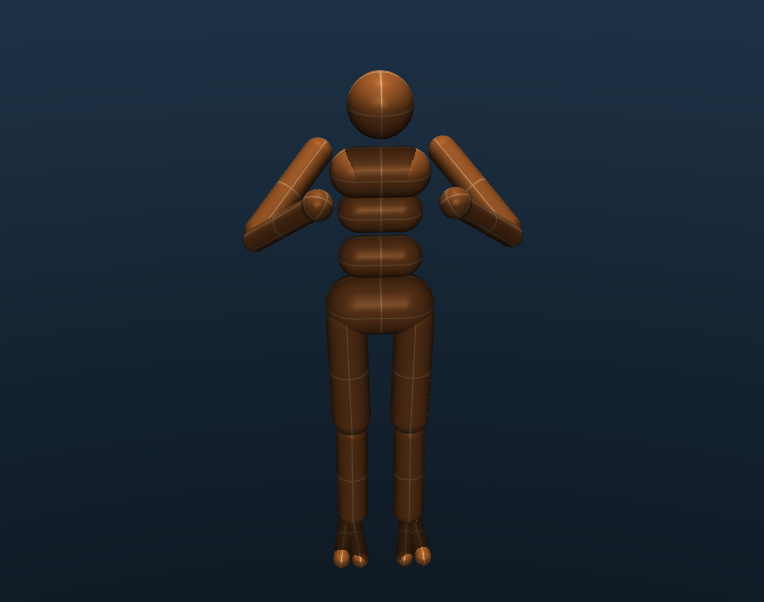

<mujoco model="IEO Humanoid body">
<asset>
<texture type="skybox" builtin="gradient" rgb1=".3 .5 .7" rgb2="0 0 0" width="512" height="512"/>
<texture name="body" type="cube" builtin="flat" mark="cross" width="127" height="1278"
rgb1="0.8 0.6 0.4" rgb2="0.8 0.6 0.4" markrgb="1 1 1" random="0.01"/>
<material name="body" texture="body" texuniform="true" rgba="0.8 0.6 .4 1"/>
<texture name="grid" type="2d" builtin="checker" width="512" height="512" rgb1=".1 .2 .3" rgb2=".2 .3 .4"/>
<material name="grid" texture="grid" texrepeat="1 1" texuniform="true" reflectance=".2"/>
</asset>
<default>
<motor ctrlrange="-1 1" ctrllimited="true"/>
<default class="body">
<geom type="capsule" condim="1" friction=".7" solimp=".9 .99 .003" solref=".015 1" material="body"/>
<joint type="hinge" damping=".2" stiffness="1" armature=".01" limited="true" solimplimit="0 .99 .01"/>
<default class="big_joint">
<joint damping="5" stiffness="10"/> <!--damping阻尼属性影响关节的容易变化程度，值越大在撞击时越能抗变化；stiffness刚度； 艾易欧科技 -->
<default class="big_stiff_joint">
<joint stiffness="20"/>
</default>
</default>
</default>
</default>
<visual>
<map force="0.1" zfar="30"/>
<rgba haze="0.15 0.25 0.35 1"/>
<quality shadowsize="4096"/>
<global offwidth="800" offheight="800"/>
</visual>
<worldbody>
<body name="torso" pos="0 0 1.5" childclass="body">
<camera name="back" pos="-3 0 1" xyaxes="0 -1 0 1 0 2" mode="trackcom"/>
<camera name="side" pos="0 -3 1" xyaxes="1 0 0 0 1 2" mode="trackcom"/>
<freejoint name="root"/>
<geom name="torso" fromto="0 -.07 0 0 .07 0" size=".07"/>
<geom name="upper_waist" fromto="-.01 -.06 -.12 -.01 .06 -.12" size=".06"/>
<body name="head" pos="0 0 .19"> <!-- 头部的躯体， pos表示相对于躯干torso的偏移位置 -->
<geom name="head" type="sphere" size=".09"/>
<camera name="egocentric" pos=".09 0 0" xyaxes="0 -1 0 .1 0 1" fovy="80"/>
</body>
<body name="lower_waist" pos="-.01 0 -.26"> <!-- 下腰部分的躯体， pos表示相对上一连接部分torso的偏移位置 -->
<geom name="lower_waist" fromto="0 -.06 0 0 .06 0" size=".06"/>
<joint name="abdomen_z" pos="0 0 .065" axis="0 0 1" range="-45 45" class="big_stiff_joint"/>
<joint name="abdomen_y" pos="0 0 .065" axis="0 1 0" range="-75 30" class="big_joint"/><!--pos表示旋转关节在物体中的位置，axis表示绕哪个轴旋转，range表示可旋转的角度范围（右手法则：逆时针为正，顺时针负），class为引用另定义的属性 -->
<body name="pelvis" pos="0 0 -.165"> <!-- 骨盆部分的躯体， pos表示相对上一连接部分的偏移位置 -->
<joint name="abdomen_x" pos="0 0 .1" axis="1 0 0" range="-35 35" class="big_joint"/>
<geom name="butt" fromto="-.02 -.07 0 -.02 .07 0" size=".09"/>
<body name="right_thigh" pos="0 -.1 -.04"> <!-- 右大腿部分， pos表示相对上一级pelvis的偏移位置；下3行表示有3个旋转关节，其阻尼和刚度属性由big_joint描述 -->
<joint name="right_hip_x" axis="1 0 0" range="-25 5" class="big_joint"/>
<joint name="right_hip_z" axis="0 0 1" range="-60 35" class="big_joint"/>
<joint name="right_hip_y" axis="0 1 0" range="-110 20" class="big_stiff_joint"/>
<geom name="right_thigh" fromto="0 0 0 0 .01 -.34" size=".06"/>
<body name="right_shin" pos="0 .01 -.403"> <!-- 右小腿骨部分， pos表示相对上一级right_thigh的偏移位置 -->
<joint name="right_knee" pos="0 0 .02" axis="0 -1 0" range="-160 2"/>
<geom name="right_shin" fromto="0 0 0 0 0 -.3" size=".049"/>
<body name="right_foot" pos="0 0 -.39"> <!-- 右脚掌部分， pos表示相对上一级right_shin的偏移位置 -->
<joint name="right_ankle_y" pos="0 0 .08" axis="0 1 0" range="-50 50" stiffness="6"/>
<joint name="right_ankle_x" pos="0 0 .04" axis="1 0 .5" range="-50 50" stiffness="3"/>
<geom name="right_right_foot" fromto="-.07 -.02 0 .14 -.04 0" size=".027"/>
<geom name="left_right_foot" fromto="-.07 0 0 .14 .02 0" size=".027"/>
</body>
</body>
</body>
<!-- 左腿部分参数类似于右腿 -->
<body name="left_thigh" pos="0 .1 -.04"> <!-- 左大腿部分， pos表示相对上一级pelvis的偏移位置 -->
<joint name="left_hip_x" axis="-1 0 0" range="-25 5" class="big_joint"/>
<joint name="left_hip_z" axis="0 0 -1" range="-60 35" class="big_joint"/>
<joint name="left_hip_y" axis="0 1 0" range="-110 20" class="big_stiff_joint"/>
<geom name="left_thigh" fromto="0 0 0 0 -.01 -.34" size=".06"/>
<body name="left_shin" pos="0 -.01 -.403">
<joint name="left_knee" pos="0 0 .02" axis="0 -1 0" range="-160 2"/>
<geom name="left_shin" fromto="0 0 0 0 0 -.3" size=".049"/>
<body name="left_foot" pos="0 0 -.39">
<joint name="left_ankle_y" pos="0 0 .08" axis="0 1 0" range="-50 50" stiffness="6"/>
<joint name="left_ankle_x" pos="0 0 .04" axis="1 0 .5" range="-50 50" stiffness="3"/>
<geom name="left_left_foot" fromto="-.07 .02 0 .14 .04 0" size=".027"/>
<geom name="right_left_foot" fromto="-.07 0 0 .14 -.02 0" size=".027"/>
</body>
</body>
</body>
</body>
</body>
<body name="right_upper_arm" pos="0 -.17 .06">
<joint name="right_shoulder1" axis="2 1 1" range="-85 60"/>
<joint name="right_shoulder2" axis="0 -1 1" range="-85 60"/>
<geom name="right_upper_arm" fromto="0 0 0 .16 -.16 -.16" size=".04 .16"/>
<body name="right_lower_arm" pos=".18 -.18 -.18">
<joint name="right_elbow" axis="0 -1 1" range="-90 50" stiffness="0"/>
<geom name="right_lower_arm" fromto=".01 .01 .01 .17 .17 .17" size=".031"/>
<body name="right_hand" pos=".18 .18 .18">
<geom name="right_hand" type="sphere" size=".04" zaxis="1 1 1"/>
</body>
</body>
</body>
<body name="left_upper_arm" pos="0 .17 .06">
<joint name="left_shoulder1" axis="2 -1 1" range="-60 85"/>
<joint name="left_shoulder2" axis="0 1 1" range="-60 85"/>
<geom name="left_upper_arm" fromto="0 0 0 .16 .16 -.16" size=".04 .16"/>
<body name="left_lower_arm" pos=".18 .18 -.18">
<joint name="left_elbow" axis="0 -1 -1" range="-90 50" stiffness="0"/>
<geom name="left_lower_arm" fromto=".01 -.01 .01 .17 -.17 .17" size=".031"/>
<body name="left_hand" pos=".18 -.18 .18">
<geom name="left_hand" type="sphere" size=".04" zaxis="1 -1 1"/>
</body>
</body>
</body>
</body>
</worldbody>
<actuator><!-- 定义关节上的执行器 -->
<motor name="abdomen_y" gear="40" joint="abdomen_y"/>
<motor name="abdomen_z" gear="40" joint="abdomen_z"/>
<motor name="abdomen_x" gear="40" joint="abdomen_x"/>
<motor name="right_hip_x" gear="40" joint="right_hip_x"/>
<motor name="right_hip_z" gear="40" joint="right_hip_z"/>
<motor name="right_hip_y" gear="120" joint="right_hip_y"/>
<motor name="right_knee" gear="80" joint="right_knee"/>
<motor name="right_ankle_x" gear="20" joint="right_ankle_x"/>
<motor name="right_ankle_y" gear="20" joint="right_ankle_y"/>
<motor name="left_hip_x" gear="40" joint="left_hip_x"/>
<motor name="left_hip_z" gear="40" joint="left_hip_z"/>
<motor name="left_hip_y" gear="120" joint="left_hip_y"/>
<motor name="left_knee" gear="80" joint="left_knee"/>
<motor name="left_ankle_x" gear="20" joint="left_ankle_x"/>
<motor name="left_ankle_y" gear="20" joint="left_ankle_y"/>
<motor name="right_shoulder1" gear="20" joint="right_shoulder1"/>
<motor name="right_shoulder2" gear="20" joint="right_shoulder2"/>
<motor name="right_elbow" gear="40" joint="right_elbow"/>
<motor name="left_shoulder1" gear="20" joint="left_shoulder1"/>
<motor name="left_shoulder2" gear="20" joint="left_shoulder2"/>
<motor name="left_elbow" gear="40" joint="left_elbow"/>
</actuator>
</mujoco>
